Before the HEMI, This Engine Carried Chrysler’s Biggest Dreams

Before the HEMI, This Engine Carried Chrysler’s Biggest Dreams

Some engines were born to do work.

Some engines were born to chase speed.

But there were also engines created to represent power, smoothness, and a sense of luxury that only a very small number of people in society at that time could ever reach.

The inline 8-cylinder engine, also known as the straight 8, was exactly that kind of symbol.

In the 1920s and 1930s, when America was still captivated by long, heavy, glossy, and imposing sedans, the straight 8 configuration was seen as a statement of class.

It was smoother, silkier, and even sounded more refined than most of the common six-cylinder engines of the time.

But the journey of this type of engine did not begin in Detroit.

In fact, the first prototype of a straight 8 engine is believed to have been developed by a French company called CGV, although it never truly entered mass production.

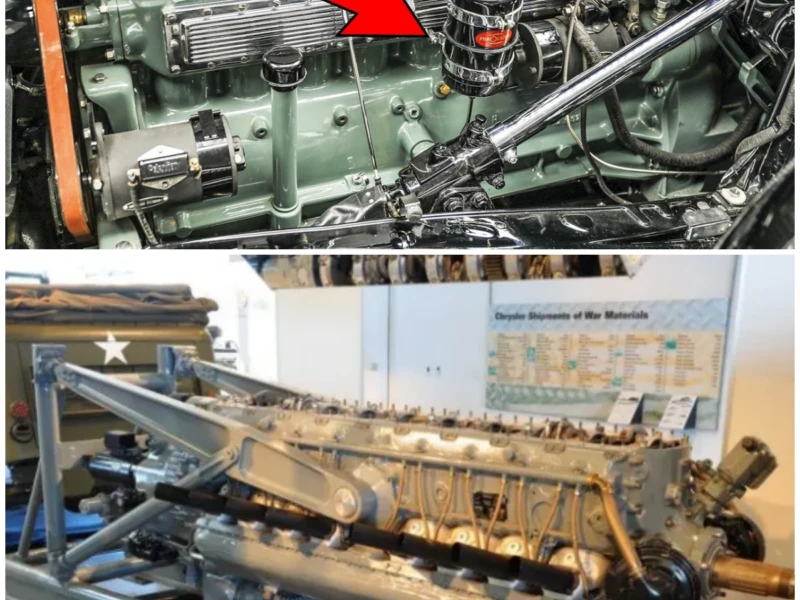

Later, this configuration also appeared in aviation during World War I.

One notable example was Germany’s Dameler D4 engine.

In theory, stretching the cylinders into one straight line helped the engine run more smoothly, but in reality, the excessive length created many problems with durability and mechanical stability.

Even so, after the war, that idea did not disappear.

On the contrary, it began to find more suitable ground in the world of luxury automobiles.

In Europe, expensive and prestigious brands such as Isotchini and Bugatti brought the straight 8 into their high-end models.

Then, not long after that wave crossed the Atlantic to America, where Duenberg and many other luxury car makers quickly turned the Straight 8 engine into a symbol of wealth, power, and modernity.

And of course, Chrysler could not stay out of that game.

By the late 1920s, Chrysler was no longer a young name.

They wanted more than just building good cars.

They wanted to enter the arena of Packard, Pierce Arrow, Lincoln, and Cadillac, the names that were dominating America’s luxury car segment.

To be seen as their equal, Chrysler understood that it could not rely on six-cylinder engines alone.

So Chrysler began developing its own straight 8 line based on its existing six-cylinder engine platform, but extended by two more cylinders to achieve the smoothness and presence that the high-end segment demanded at the time.

By 1930 and 1931, these straight eight engines officially appeared in models carrying the Dodge, Dotto, and Chrysler badges, opening an entirely new chapter in the corporation’s ambition to rise.

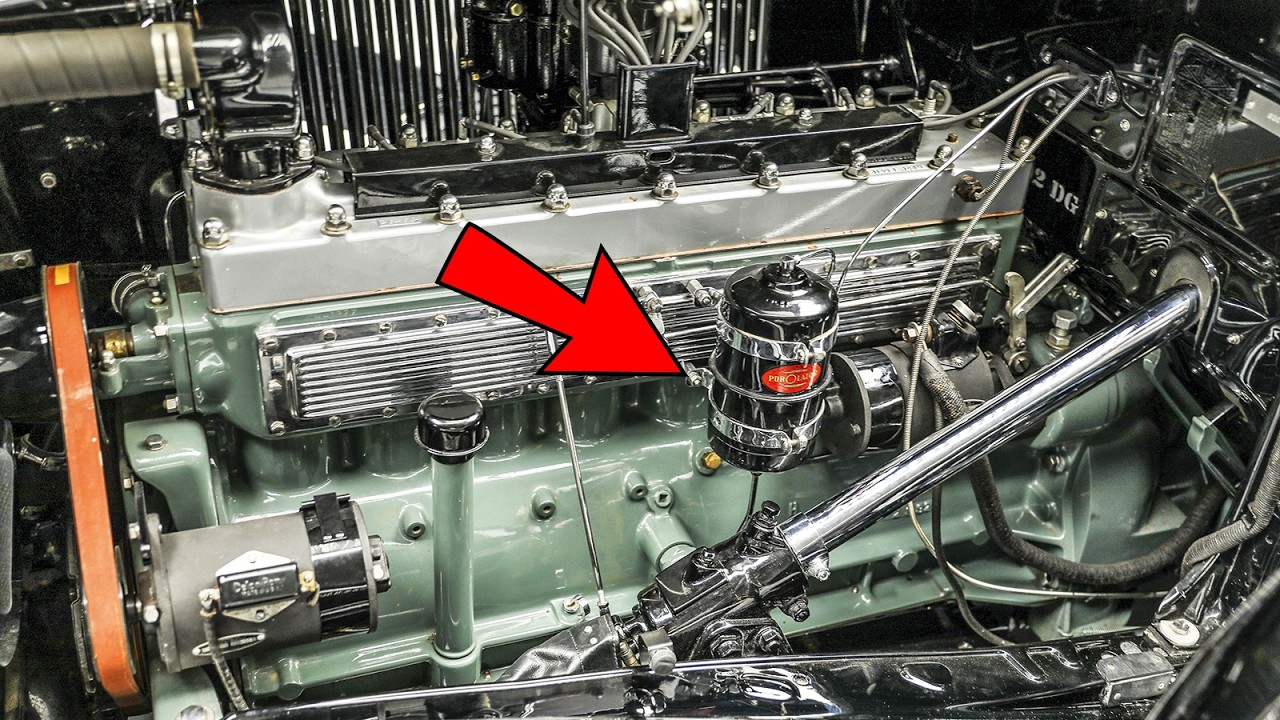

In basic configuration, this was an inline 8 cylinder engine, meaning all eight cylinders were arranged in a single >> >> row within one long engine block.

Chrysler chose a flathead design, also known as an L head or flathead.

In this layout, the two valves for each cylinder were not placed above the combustion chamber like in later overhead valve engines, but were positioned along one side of the engine block, specifically on the right side.

That arrangement created a combustion chamber shaped like a crescent or half moon.

It was not ideal for breathing at high RPM, but in return, it was very simple, durable, easy to manufacture, and especially well suited to the smooth running philosophy of American luxury cars at the time.

The displacement range of the Chrysler Straight 8 was also very broad, showing that the company tried to turn the same mechanical architecture into several different product levels.

Depending on the year and the model line, this engine appeared in displacements such as 208, 221, 240, 261, 274, 282, 299, 324.

And at the top end, 385 cub in.

The fact that a flathead inline 8 could reach 385 cubic inch alone was enough to show that Chrysler wanted to use it as a statement of strength for its most upscale models, especially the Imperial.

In terms of performance, depending on the version, the Chrysler Straight 8 produced about 70 to 150 horsepower, usually peaking at around 3,200 to 3,400 revolutions per minute.

The 385 cubic in version also delivered as much as about 280 lb feet of torque at just 1,200 revolutions per minute.

Inside the engine block, Chrysler also applied many mechanical solutions typical of that era.

The pistons used a slotted skirt design to control thermal expansion and reduce piston slap when the engine was still cold.

The crankshaft, the component under the greatest load in an engine this long, was very carefully both dynamically and statically balanced.

Depending on the version, it was supported by as many as nine main bearings made of brass or babbbit material.

This was an extremely important detail because with the long crankshaft of an inline 8, without enough main bearings and proper balancing, the engine would quickly develop vibration, wear, or even cracking under higher loads.

The compression ratio of the Chrysler Straight 8 usually ranged from 5.2:1 to 6.8:1, 8:1, a figure that was very typical for a time when gasoline quality was still limited and manufacturers prioritized durability over maximum performance.

In addition, one of the most notable features of the Chrysler Straight 8 lay in its full pressure lubrication system.

Oil was forced to the crankshaft, connecting rods, camshaft, and other auxiliary points requiring lubrication in a systematic way.

Chrysler did not stop there either, as it also used oil spray holes to direct oil onto the cylinder walls.

This may sound like a small detail, but it reflected a very serious design philosophy.

The cylinder walls were where the pistons and rings constantly rubbed under high temperature conditions.

If that area lacked oil, the engine would wear quickly, lose compression sealing, and deteriorate much faster.

The addition of oil spray jets helped reduce friction, support localized cooling, and extend the life of the entire internal moving assembly.

Next came a very distinctive characteristic of the Chrysler Straight 8 found in the layout of its intake and exhaust paths.

Because this was a flathead engine, the valves were placed in the block rather than above the cylinders.

That meant the intake and exhaust flow could not travel in the straight direct way seen in later overhead valve designs.

Instead, the exhaust manifold exited from the block, crossed above the intake manifold and then curved downward in the center area.

This layout showed both the complexity of the flathead architecture and the limitations that engineers of the time had to accept.

From a pure performance standpoint, this was not the ideal solution for optimizing air flow.

The path of the exhaust gases was fairly convoluted, and the breathing ability of the crescent-shaped combustion chamber was also limited.

But in return, this design helped the engine retain the simplicity and compactness expected by the engineering standards of that era while still meeting the main goal of delivering smooth low RPM torque.

However, the most interesting point lay in a problem that every straight 8 engine had to face.

That was the vibration of an engine block that was simply too long.

But Chrysler addressed that challenge with a very clever solution called floating power.

In 1931, the company introduced an advanced rubber mounting system to isolate engine vibration from the chassis.

Today, rubber engine mounts are completely ordinary.

But at the time, this was an extremely modern step forward.

Instead of allowing all vibration to pass directly into the body through rigid mounts, floating power allowed the engine to be suspended in a way that absorbed part of the movement, making the car noticeably smoother both at idle and under light acceleration.

And this was the engine closely tied to Chrysler’s ambition to stand shoulderto-shoulder with the greatest luxury car brands in America.

At the very top, the straight 8 appeared in the Imperial lines such as CG, CH, CQ, and CW.

In these cars, the engine did not just provide pulling power for a large and heavy body, but also helped build an image of dignity, luxury, and authority.

An Imperial with a long hood and a straight 8 engine up front was Chrysler’s statement of status in the 1930s.

Beyond Imperial, Chrysler also used the straight 8 in upscale lines such as Saratoga, Airflow, Airststream, and later New Yorker.

In Saratoga and New Yorker, this engine created a clear distinction from the six-cylinder versions, delivering a smoother and more upscale feel in the air flow.

The straight 8 became part of Chrysler’s bold effort to combine a luxury engine with aerodynamic styling that was ahead of its time.

Chrysler also extended the straight 8 down into its subbrands such as Dodge with the DC, DG, DK, and DO lines and some Dotto models.

This was an attempt to bring a more premium feel closer to more mainstream customers.

However, in the context of the Great Depression, most buyers in that segment still preferred six-cylinder engines that were more economical and easier to afford.

As a result, sales of 8-cylinder Dodges were very low.

In 1933 alone, Dodge sold only 1,652 cars with 8-cylinder engines, a figure that showed the market was almost entirely unprepared for that choice in the lower segment.

But one of the most outstanding demonstrations of durability came in 1930 when a Dodge 8C made a journey through a long chain of dealerships from Georgia to California, accumulating a total of about 103,000 mi.

Given the road conditions and technology of that era, this was an extremely impressive number.

Then at Bonavville, this 1934 Imperial coupe set 72 speed records, reaching about 95.7 mph.

An even more shocking demonstration was the Chrysler airflow test.

To promote the strength of its body structure, Chrysler dropped an air flow from a cliff about 110 ft high in Pennsylvania.

The car was heavily damaged, but it still landed on its wheels and was able to roll away afterward.

This was one of the boldest publicity stunts of that era.

Alongside those public records, the straight 8 was also linked to the upper class through the ultra rare Imperial custom CW powered by the 385 cubic in engine.

This line was once owned by Manuel Elzison and Major Edward Bose and Bose’s car was later used as a command car for Admiral Chester Nimttz during World War II.

Although it had once been a symbol of luxury and power in the 1930s, the Chrysler Straight 8 ultimately could not escape the rules of elimination in automotive history, the signs of its decline appeared fairly early.

Dodge was the brand that abandoned the straight 8 in 1933 when market reality showed that its customers were not willing to pay extra for a large, long, and expensive engine in the middle of the Great Depression.

For them, a six-cylinder engine that was more economical, easier to maintain, and more affordable was clearly the more sensible choice.

Even so, in Chrysler’s more upscale lines, the Straight 8 continued to survive because it still matched the image of a pre-war luxury car.

In the Imperial and other large Chrysler models, it remained a symbol of dignity and class.

But after World War II, the American automotive world entered a different era.

Designers wanted lower bodies, wider passenger compartments, and more efficient overall packaging.

Engineers, meanwhile, wanted engines that could handle higher compression ratios, higher RPM, and greater power potential.

It was at this point that the straight 8 began to reveal its limitations.

Its crankshaft was too long, making the entire structure difficult to keep rigid as loads increased.

Under harsher operating conditions, the long engine block was more prone to torsional vibration, instability, and the risk of cracking if pushed beyond its original design limits.

In other words, what had once been a symbol of smoothness was now becoming an obstacle as the industry shifted toward more modern performance priorities.

The size of the engine was also a major problem.

An inline 8 block that was too long forced the car to have a large engine bay and that no longer fit the post-war design philosophy that prioritized maximizing cabin space and optimizing body proportions.

Meanwhile, the V8 configuration offered nearly every advantage the straight 8 was gradually losing.

It was shorter, lighter, stiffer, easier to package, and had far greater performance potential.

As a result, by the late 1940s and early 1950s, not only Chrysler, but nearly the entire American auto industry, from Oldsmobile, Pontiac, and Buick to Packard, gradually abandoned the straight 8.

At Chrysler, the most symbolic moment came in 1951 when this engine officially gave way to the Hemi 58, a machine that was more compact, more rigid, and far more powerful.

That was not just the replacement of one engine.

It was the passing of the torch between two eras.

And perhaps that is also the right way to remember the Chrysler straight 8.

It was not a failure.

It was the peak of an older mechanical philosophy born for an era of smoothness, grandeur, and prestige.

It disappeared not because it had no value, but because America had moved into a new chapter where speed, efficiency, and modern architecture mattered more than the length of an engine block laid straight beneath the hood.
