The trailer is starting to slide.
You’re looking in the mirror, watching the white line disappear under the tires, and you realize you aren’t driving anymore.
You’re just a passenger.
The engine is pinned and the drive shaft is spinning, but the truck isn’t moving.
In a matter of seconds, you’ve polished the ice to a mirror finish, and you’re looking at a $5,000 tow bill.
This isn’t a horsepower problem.
The engine is making power and the transmission is in gear, but you’re still stuck.
The reason is buried inside the axle, a mechanism that works perfectly on dry pavement, but becomes a liability the moment you lose traction.
This is the story of the differential lock, the switch that stands between you and the ditch.
The differential is one of the most elegant pieces of engineering in a drivetrain.
It solves a real problem that exists every time a vehicle makes a turn.
When a truck turns 90° with a 6ft track width, the outside wheel travels a noticeably longer arc than the inside, just a few feet more at typical turning radi, but enough to create real stress if both were locked together.
If both axle shafts were locked together and forced to spin at identical speeds, the tires would fight the road.
The inside tire would scrub and skiP. The outside tire would drag.
The drive line would absorb stress it was never designed to handle continuously.
The differential solves all of that.
It allows the left and right axle shafts to rotate at different speeds while still receiving torque from the drive shaft.
The mechanism that makes this possible is a set of small bevel gears mounted on a cross pin inside the differential carrier.
These are the spider gears.
They sit between the two side gears, one of which is splined to each axle shaft.
When both wheels are rolling at the same speed, the spider gears do not rotate on their own pin.
They turn as a unit with the carrier and torque flows equally to both sides.
But when one wheel needs to turn faster than the other, the spider gears begin to rotate on their pin, allowing the speed difference to occur without binding the drive line.
On pavement in a turn, this is exactly what should happen.
The truck turns cleanly, the tires stay in contact with the road, and the drive line stays relaxed.
But that same elegance contains a traP. An open differential does not actively choose a wheel.
It allows a speed difference between the two axle shafts, and the usable torque at both sides is limited by the wheel with the least traction.
On a dry road with both tires gripping equally, that balance holds, but when one wheel loses traction, the balance collapses.
The slipping wheel suddenly requires very little force to spin.
The spider gears respond by allowing the low traction side gear to turn more easily, which lets that wheel spin while limiting how much useful torque the opposite wheel can apply.
The wheel with no grip spins freely.
The wheel on solid ground may still receive torque, but often not enough to move the truck.
What is important to understand is that the open differential is not making a choice.
It is simply responding to resistance.
The spider gears simply allow the speed difference that the traction imbalance makes possible.
And when one side loses traction, that side can spin while the other side remains limited by it.
Equal torque to both sides does not mean equal usable traction.
The low traction side sets the ceiling.
And when that ceiling drops to nearly nothing, the grounded wheel is starved regardless of how much power the engine is producing.
The truck is not stuck because the engine lacks power.
It is stuck because the wheel with grip cannot receive enough usable axle torque to move the truck once the other wheel loses traction.
The open differential cannot distinguish between a wheel that is spinning because it is in a turn and a wheel that is spinning because it has lost contact with anything useful.
It treats both situations identically.
The result is a wheel spinning in mud at high speed while the wheel on firm ground barely moves.
The numbers make this concrete.
In a worst case scenario, with one wheel on ice or completely off the ground, the resistance on that side drops to nearly nothing.
Even if the engine is producing 400 foot-lb at the crankshaft, both wheels only receive as much usable axle torque as the low traction side can sustain, often just a fraction of the potential.
The trap built into the differential’s own design is now working directly against the driver.
This was not a theoretical concern for the people who operated trucks and heavy equipment in the first half of the 20th century.
These machines worked in conditions where traction varied constantly and dramatically.
Farm tractors crossed fields where one side of the axle might be in a furrow and the other on firm soil.
Military vehicles operated on terrain that had no road at all.
Logging trucks ran on tracks that were mud in spring and ice in winter.
Construction equipment worked on grades and fill material that shifted under load.
For many operators, especially those using machines with open differentials, traction loss was not an abstract engineering limitation.
It was a practical problem that could strand a machine in the middle of a job, sometimes miles from the nearest helP. The workarounds that developed were creative and sometimes effective, but none of them addressed what the axle was actually doing.
Experienced drivers learn to use momentum, carrying enough speed into a soft section to push through before the differential had time to limit torque to the grounded wheel.
Throttle technique mattered.
A smooth, steady application of power gave the tires a better chance of maintaining grip than a sudden burst that broke traction immediately.
Chains wrapped around the drive tires added mechanical grip to the surface and reduced the speed at which a wheel could spin away its traction.
Boards, brush, gravel, and anything else that could be placed under a spinning tire were standard recovery tools on any serious working vehicle.
But each of those methods had a ceiling.
Momentum could bury the truck deeper if the surface gave way.
Throttle could polish mud or ice and make the next attempt harder than the laSt. Brake tricks required precise timing and could not be sustained without building heat and wear on the drag side.
Every one of these techniques was an operator improvising around the axle’s behavior, not fixing it.
Some operators went further.
They deliberately applied the service brake to the spinning wheel to create artificial resistance, forcing the differential to redirect usable torque to the other side.
On vehicles with a single brake pedal controlling both rear wheels, this required modification.
Some trucks were fitted with individual rear brake controls specifically for this purpose.
It worked after a fashion, but it added brake wear, required precise footwork, and could not be sustained for long without overheating the brakes on the side being dragged.
It was a patch built on top of a patch.
When all of that failed, the options were a tow strap and another vehicle or a long wait for conditions to change.
Every one of those strategies was a way of managing the consequences of a mechanism that was doing exactly what it was built to do in conditions it was never built to handle.
The trap was still there every time the wheels turned.
The diff lock changed the equation at the source.
Before the diff lock, the open differentials behavior was fixed.
Whatever the surface did to traction, the axle responded the same way every time.
Drivers could manage the consequences, but they could not change what the differential was doing.
The diff lock became a widely adopted mechanism that gave operators direct repeatable control over how the axle behaved when traction failed.
When traction turned uneven, the driver could override the differential’s normal behavior and force the axle to operate as a single unit.
That shift from accepting what the differential did to controlling what it did was the real breakthrough.
Under normal operation, the differential carrier and the axle shafts are connected through the spider gears which allow relative rotation between the two sides.
The diff lock interrupts that relationshiP. When engaged, it mechanically couples one or both axle shafts directly to the differential carrier, eliminating the ability of the spider gears to allow any speed difference between the two sides.
Both axle shafts are now forced to rotate at the same speed regardless of what either wheel is doing.
The most common mechanical approach used a sliding collar or dog clutch.
In the unlocked position, the collar sits clear of the engagement point and the differential operates normally.
When the driver engages the lock, the collar slides along a spline shaft and meshes with a matching set of teeth on the differential carrier or the opposing axle shaft.
The two components are now physically joined.
The spider gears are still present, but the locking mechanism prevents normal differential action.
So, the two axle shafts are forced to turn together.
The spider gears are still there, but they can no longer allow a speed difference between the two sides.
That lets the wheel with grip continue to drive the vehicle even if the other side has very little traction.
The diff lock bypasses the open differentials weakness by forcing both sides to rotate together.
The practical result is immediate.
With both axle shafts turning together, the wheel with traction can now do useful work.
Even if the other wheel is spinning or has very little grip, the side with grip can apply what it needs to move the vehicle.
The trap is gone.
A truck that was helpless with one wheel spinning in mud can drive out under its own power because the grounded wheel is finally able to apply the torque it needs.
This matters most at low speed, which is exactly when traction problems tend to occur.
A truck crawling through a muddy field, a loader working on a wet construction site, a military vehicle crossing a stream bed.
These are all low-eed situations where the engine has torque available, but the open differential was limiting how much of it could be used.
The diff lock does not add power.
It changes where the power goes.
The trade-offs are real and they matter.
A locked differential forces both wheels to turn at the same speed, which is exactly wrong for cornering on firm ground.
In a turn, the outside wheel needs to travel faster than the inside wheel.
With the diff lock engaged, it cannot.
The result is drive line bind, where the drivetrain absorbs the rotational stress that the differential was designed to relieve on a hard surface.
This creates tire scrub, steering resistance, and mechanical stress on the axle shafts.
The differential housing and the driveline components upstream.
Sustained use on pavement can damage components that were not designed to handle that load continuously.
On pavement, the forces that the differential normally absorbs have nowhere to go.
The tires fight the surface, the shafts fight each other, and the drive line carries load.
It was not designed to sustain continuously.
An operator who understands this uses the lock selectively, engaging it before a soft section and releasing it the moment the truck returns to ground where normal differential action can do its job.
This is why diff lock is a situational tool.
It is engaged when traction is uneven and low-speed mobility is the priority.
It is disengaged when the vehicle returns to firm ground.
Air actuated systems common on heavy trucks allow the driver to engage and disengage the lock from the cab.
Older equipment often used mechanical linkage.
Some machines also use automatic locking or limited slip designs, but those do not all behave the same way as a true driver selected diff lock.
There is also a distinction worth making between a locking differential and a limited slip differential.
A limited slip unit uses clutch packs, friction cones, or a gear-based mechanism to resist speed differences between the two axle shafts without eliminating them entirely.
It allows some differentiation, but applies a bias toward the higher traction wheel.
It works well in moderate conditions, but in severe traction loss where one wheel has almost no grip at all, a limited slip unit can still be overwhelmed.
The full diff lock does not compromise.
It forces both shafts to rotate together so the side with grip can continue to drive the vehicle even when the other side has very little traction.
The adoption of diff lock across industries was a direct response to a problem that cost real money and real time.
Military and off-road vehicles increasingly adopted differential control as traction demands grew, especially in applications where a vehicle stranded by one spinning wheel was unacceptable.
Agricultural and construction manufacturers followed, making rear diff locks standard equipment on machines that routinely worked in conditions where traction could not be assumed.
Trucking followed as axle manufacturers developed reliable driver controlled locking systems for vocational trucks, dump trucks, and concrete mixers that spent significant time off pavement.
On tandem axle trucks, the configuration added another layer.
A tandem drive axle setup includes an interaxle differential, sometimes called a power divider, that splits torque between the forward and rear drive axles.
Under normal conditions, it allows slight speed differences between the two axles, but it carries the same vulnerability.
If one drive axle loses traction, the inter axle differential allows that axle to turn more freely.
And the axle that still has grip is limited by the same traction ceiling that defines the open differential’s weakness at the wheel level.
Locking the inter axle differential ensures power reaches both drive axles, though each axle’s own differential may still remain open unless separately locked.
Combined with individual axle diff locks, a tandem truck can close off most of the traction loss scenarios that would otherwise leave it stranded.
The diff lock did not fix the differential.
It gave the driver the ability to override it in the specific moments when the differential’s own strengths were working against them.
The differential is still the right mechanism for normal driving.
It handles turns correctly, protects the drive line from rotational stress, and allows the smooth, predictable behavior that makes a vehicle manageable on pavement.
The diff lock does not replace any of that.
It suspends it temporarily in the conditions where those same strengths become the problem.
Every working vehicle that has ever lost traction on one side has faced the same problem.
One wheel spinning, one wheel doing almost nothing, and a machine with power it cannot use.
The open differential was not broken.
It was doing exactly what it was designed to do.
But in those moments, what it was designed to do was the wrong thing.
The diff lock changed that.
It turned traction on one side into motion for the whole vehicle.
And it did it without adding power, without changing the engine, and without rebuilding the axle.
It changed what happened to the torque that was already there.

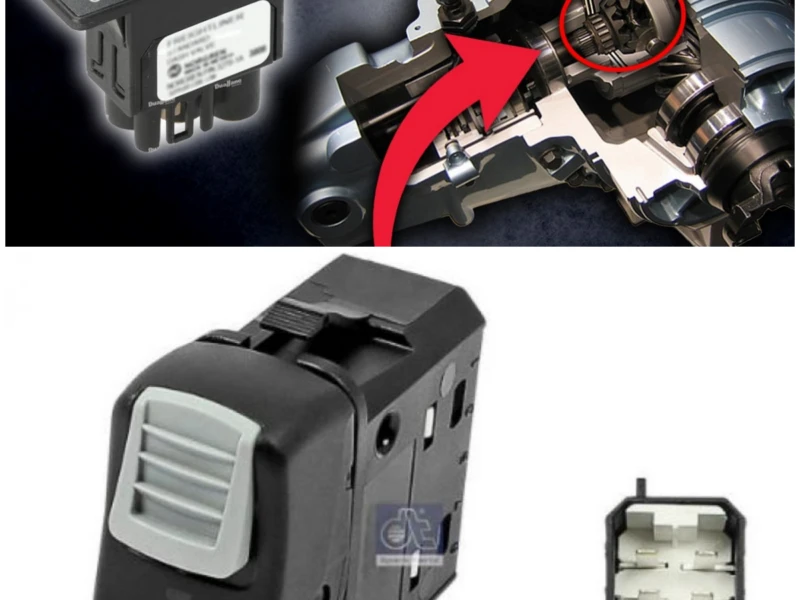

The switch in the cab looks simple.
It is a small thing, a button or a lever or a toggle, easy to overlook on a dashboard full of controls.
But what it does to the axle is not small.
It changes the fundamental relationship between the two drive wheels.
It takes a drivetrain that was about to waste its available torque on a wheel that could not use it and it redirects that torque to the side that can.
It is the difference between a truck that drives out and a truck that ends up in the ditch.
