How One Forgotten Chrysler Engine Saved an Entire Company
How One Forgotten Chrysler Engine Saved an Entire Company
Some engines were born to pull loads.
Some engines were born to chase speed.
But there are also engines that appeared at the very moment when an entire company was standing on the line between survival and collapse.
And a single correct design was enough to change history.
In the early 1920s, the American auto industry was entering a brutal war.
Ford dominated through massive production volume.
General Motors expanded its influence through an ambitious brand strategy.
And in the middle of that storm, Maxwell, the name that would later give way to Chrysler, was still struggling to survive.
They did not have the biggest advantage in scale.
They were not the oldest name either.
The only thing that could help them lift their heads and step into the fight was engineering.
And it was at that very moment that an extraordinary group of engineers appeared.
Fred Zeter, Owen Skelton, and Carl Brerier.
Three men who would later be known by a very fitting name, the Three Musketeers.
They did not just design a machine.
They laid the foundation for an entire philosophy of car building.
A car priced more accessibly than a luxury car, but one that had to carry the engineering mindset of a luxury car.
A car strong enough, durable enough, and modern enough to make people look at Chrysler in a different way.
The man behind that vision was Walter P. Chrysler.
He did not want to create a cheap car just to squeeze temporarily into the market.
He wanted to create a car that the moment people opened the hood, they would immediately understand that this was not an ordinary company.
This was an automaker that placed engineering at the center.
That is the story we are going to open together today.
The story of the 1924 Chrysler 6, of the Flathead 6 engine, and of the moment when engineering did not just create a better car, but also rewrote the fate of an entire brand.
To understand why the Chrysler Flathead 6 was so important, we have to go back a few years before the Chrysler name officially stepped onto the stage.
Because the truth is, technical revolutions rarely begin on launch day.
They usually begin quietly among unfinished drawings, struggling companies, and people who saw the future earlier than the rest of the industry.
The origins of this engine did not actually begin at Chrysler.
They began in 1919 at a time when America had just emerged from World War I.
While the auto industry was growing at a staggering pace, automakers understood that the future was not only about building more cars, but also about creating machines that were better, stronger, smoother, and more dependable.
It was in that period that an ambitious six-cylinder engine project was conceived for the Willys Corporation.
The original idea was very clear.
This was not allowed to be an oldstyle six-cylinder engine, heavy, rough, and only good enough to do the job.
It had to be a modern machine by the standards of a new era.
It had to be smooth.
It had to be durable.
It had to deliver performance good enough to elevate the entire car that carried it.
But American industrial history was never a straight road.
Willies fell into crisis.
Financial trouble quickly broke the project’s momentum.
The company went bankrupt and the factory eventually fell into the hands of William C.
Durant.
And like many other promising engineering ideas of that period, this engine nearly became an unfinished dream.
A design that had not yet matured before being buried by financial upheaval.
Then Walter P. Chrysler entered the story.
This was the moment when everything began to change.
Walter Chrysler was not the kind of leader who looked at a balance sheet and then cut away everything that was still unfinished.
He was someone who understood that sometimes a good design, a correct engineering solution could become the foundation for the entire future of a company.
When he recruited Fred Zader, Owen Skelton, and Carl Brerier to Chalmer’s in mid 1923, he was not just hiring a few talented engineers.
He was bringing in a complete engineering brain trust along with a very different philosophy of product development.
And this is the point that makes the Chrysler story more compelling than many other automakers of the same period.
While quite a few companies still saw engineering as something that had to submit completely to cost, Walter Chrysler saw engineering as a tool for creating competitive advantage.
He did not want to build the cheapest car on the market.
He wanted to build a car that made buyers feel they were getting more than what they paid for.
Faster, more durable, better braking, more modern operation.
And to do that, the mechanical heart of the car had to be exceptional first.
That moment came in January 1924 at the New York Auto Show.
It was the first time the public witnessed the Chrysler 6 model B70, the car that carried the flathead 6 engine the engineering team had poured so much effort into perfecting.
To many people at the time, this was not just a new car.
It felt like a declaration that a serious new competitor had just entered the American auto industry.

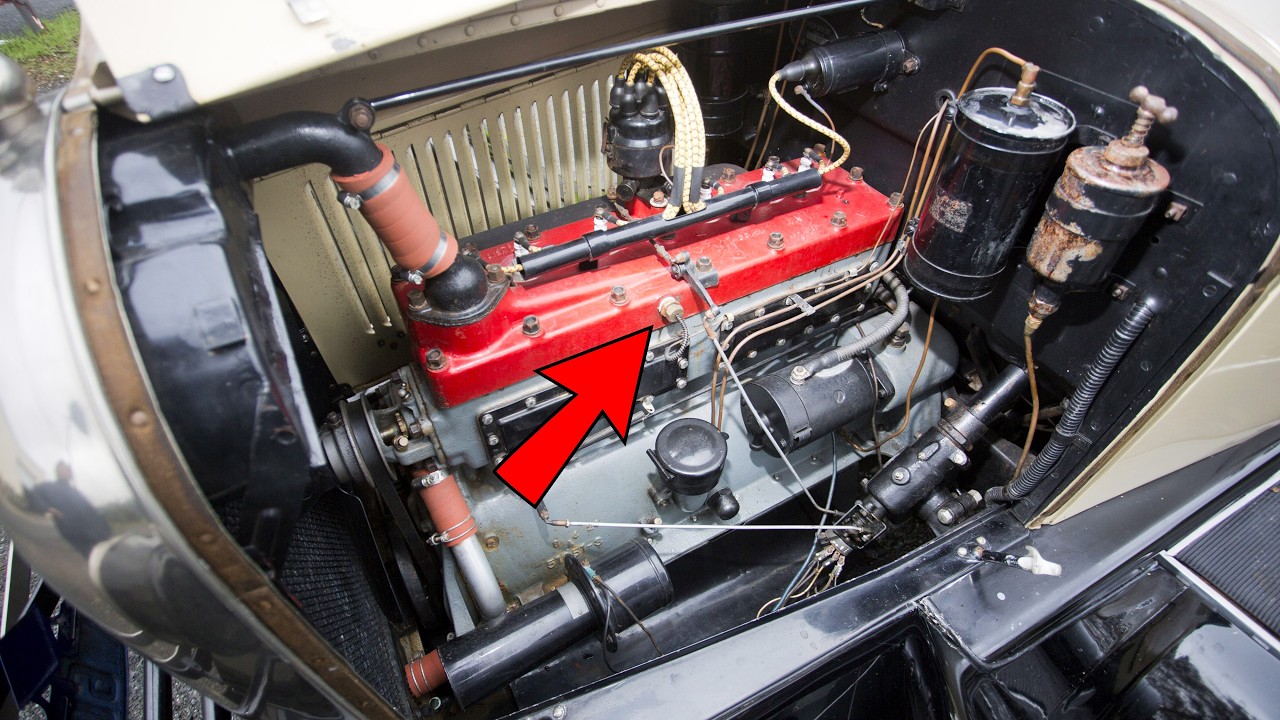

When the hood of the 1924 Chrysler 6 model B70 was opened, what people saw was a product calculated with great care where every basic specification served a larger goal to create a car that was powerful, smooth, durable, and ahead of the standards of its time.
On the original model B70, Chrysler used an inline 6 engine with a side valve layout, meaning side valve or flathead with its main structure cast in iron.
In theory, this was not an unfamiliar configuration even at that time.
But the difference lay in how Chrysler and its engineers developed that structure.
They did not try to chase complexity.
They chose a familiar mechanical foundation, then refined it to a level that clearly surpassed the industry standard.
The engine displaced 201 in, equivalent to about 3.3 L.
That was a very smart figure for a car that needed to balance performance, smoothness, and commercial appeal.
It was large enough to produce smooth pulling power, helping the car travel with confidence on the open road, but not so large that it became heavy or too expensive for middle-class buyers to afford.
From this very first specification, we can already see Walter P. Chrysler’s philosophy clearly.
He did not want the biggest car or the most expensive one.
He wanted the car that delivered the best engineering value within its price range.
Paired with that displacement was an output of 68 horsepower at 3,000 revolutions per minute.
Viewed through modern eyes, 68 horsepower sounds fairly modest.
But in the context of 1924, it was a very impressive figure.
More importantly, it showed that this engine was not just strong enough to get by, but was also designed to operate efficiently at a relatively high engine speed by the standards of its time.
In an era when many engines still leaned toward slowness and roughness, reaching 3,000 revolutions per minute in a stable manner was already a sign of an advanced design.
Even more noteworthy was the power to displacement ratio of 0.34 horsepower per cubic in.
The 4.7 compression ratio was also a very valuable detail.
By today’s standards, it was low, but in the fuel world of the early 1920s, it was a very intelligent calculation.
It was enough to improve operating efficiency while still allowing the car to run on regular gasoline of around 50 octane without detonation.
The inline 6 configuration also helped give the car a very distinct character.
Compared with many four-cylinder engines of the same period, an inline 6 had a natural advantage in mechanical balance.
That helped the engine run more smoothly, more evenly, and with less vibration.
But the greatest strength of this engine did not lie in the fact that it was an inline 6.
It lay in the way Chrysler and its trio of engineers solved a whole series of problems that many engines of the same era were still struggling with.
First came the combustion chamber, the true heart of the entire design.
Chrysler applied combustion chamber thinking that was strongly influenced by Sir Harry Ricardo, one of the biggest names in engineering in the early 20th century.
Instead of simply creating a basic combustion space for the fuel air mixture, they calculated very carefully the narrow area close to the top of the piston, commonly called the squish area.
As the piston rose near top dead center, the mixture in that area was forced sharply into the main combustion zone, creating very rapid turbulence inside the chamber.
It sounds like a small detail, but its effect was enormous.
First, that turbulence helped the flame front spread faster, burn more evenly, and burn more cleanly.
Second, it reduced the tendency toward detonation, a very serious problem in an era when fuel quality was still low.
In other words, Chrysler did not just create a more powerful engine.
They created an engine that knew how to use fuel more intelligently.
The domed section above the valve area later became known as the silver dome, a detail that carried both technical value and became a defining signature of this design.
Next came the exhaust valve cooling system.
This was one of the brightest highlights of the entire engine.
In many flathead engines of the same era, the exhaust valve was often the hottest point and also the point most prone to failure.
Heat buildup over time could easily cause the valves to burn, warp, or suffer a serious reduction in service life.
Chrysler addressed this problem by designing water jackets that wrapped very closely around the cylinder area and the valve area, while also using an active water pump to push coolant evenly all the way to the last cylinders in the block.
That may sound obvious by modern engine standards, but in 1924, it was a very practical advance.
It showed that the engineering team was not concerned only with power on paper.
They cared about making sure the engine could remain healthy after thousands of miles of realworld operation.
And it was exactly that mindset that created the lasting reputation of the Chrysler Flathead 6.
Another point, less glamorous, but extremely important, was the intake and exhaust system.
Many engines of that era suffered from uneven mixture distribution between the cylinders, leading to some cylinders running rich, others running lean, rough engine operation, and wasted performance.
Chrysler optimized the intake passages so the mixture from the carburetor entered the cylinders more evenly while also reducing restriction on the exhaust side so the exhaust gases could flow out more efficiently.
The result was an engine that was not only more powerful, but also smoother, more even, and more consistent in its response across the entire operating range.
Then came mechanical durability, a very important factor if the engine was expected to operate reliably at 3,000 revolutions per minute.
Chrysler equipped it with as many as seven main bearings.
For an inline 6 engine of that era, this was a choice that showed they were truly serious about mechanical stability.
More main bearings meant the crankshaft was supported more firmly with less torsional vibration, reduced wear, and smoother rotation at higher speeds.
Chrysler also showed great care in the machining process.
Using the same cutting tool for all the cylinders helped reduce variation between the bores, creating greater uniformity in operation.
This was a very important form of manufacturing discipline because even a good design, if built without precision, would struggle to achieve maximum effectiveness in the real world.
In addition, this engine also had features that were very modern for its time.
Aluminum pistons helped reduce reciprocating mass, which in turn allowed the engine to rev more freely and reduced the load on the rotating components.
The full pressure lubrication system ensured that oil was delivered actively to critical surfaces instead of relying only on simple splash lubrication like many older designs and especially the inclusion of replaceable oil and air filters was a major step forward in maintenance thinking.
It showed that Chrysler was thinking about the car’s long-term service life, not just the moment it left the dealership.
After its impressive debut in the Chrysler 6 model B70, this engine did not stop at being a temporary technical highlight.
It quickly entered a much longer journey, a much broader one, and one that would become far more important to both Chrysler and America.
First came passenger cars, where the Flathead 6 truly built its reputation.
After its initial success, Chrysler continued to upgrade this engine over time, expanding its displacement and refining it to suit many different vehicle lines across the corporation.
From Plymouth, Dodge, and Dotto to the Chrysler Airststream, and even more upscale models like the Imperial, the Flathead 6 platform gradually became a familiar part of American automotive life for many decades.
In Plymouth, it fit the spirit of a mass market car while delivering operating quality beyond expectations.
In Dodge and Dotto, it brought a sense of solidity and strong pulling power to models that required greater practicality.
And in Chrysler, it helped preserve the image of an automaker that valued engineering and smoothness, not just low pricing.
From 1938 onward, it was also used in agriculture, specifically in Massie Harris tractors.
Then came the most extraordinary chapter in this engine’s life, war.
During World War II, the 251 cubic inch version of the Flathead 6 was used by Chrysler in a way that is almost hard to believe today.
They combined five of these six-cylinder engines together to create the Chrysler A57 multi-bank tank engine.
It was a very American wartime solution, practical, bold, and built to make the most of what was already available in civilian industry.
After everything, the greatest value of the Chrysler Flathead 6 lay in the fact that it left Chrysler with more than just a successful engine.
It left a foundation.
Before the Chrysler 6 appeared, Maxwell was still a company struggling to find a way to survive in an increasingly brutal American auto market.
They did not have Ford’s advantage in scale.
They also did not yet have a strong brand system like General Motors.
What they needed was not just a car that could sell, but a product outstanding enough to change the way the market looked at them.
And that was exactly what the Flathead 6 achieved.
This engine became the center of a very clear declaration.
Chrysler would not build its name through flashy advertising first and only think about engineering afterward.
They would go in the opposite direction.
Engineering had to be the thing that created credibility.
Engineering had to be the reason buyers believed this was a serious brand.
That is why the success of the Chrysler 6 in 1924 did more than just help sell cars.
It helped save a company standing at the edge, then paved the way for the official birth of Chrysler Corporation in 1925.
That is why when we look back, the Flathead 6 was not simply a machine made of cast iron, aluminum, and steel.
It was a symbol of the moment Chrysler defined itself.
an automaker where engineers did not stand behind the sales department, but at the center of the story.
From that point on, a culture of respect for engineering, something that would later become closely associated with Chrysler’s engineering spirit, began to take clear shape.
And perhaps that was the deepest legacy of this engine.
It did not just help one car succeed.
It helped create the identity of an entire automotive empire.
an identity built on the belief that if the mechanical foundation was good enough, the brand would also have a chance to endure.
