The road is dropping away and the driver is already leaning into the brakes harder than he should.
It’s not a tap.
It’s a desperate sustained push.
The drums are cooking.
The pedal is firm, but the truck is not slowing the way it should.
Behind him, 40 tons of weight have started dictating the speed, pushing him down the grade.
And there’s nowhere left to go.
This is a fully loaded commercial truck in the early decades of American trucking.
And the braking system underneath it was built for something considerably lighter and considerably slower.
On a grade like this one, that gap has a way of making itself known in the worst possible way.
This was not the result of poor maintenance or driver error.
It was the predictable consequence of a braking technology that had not kept pace with the vehicles it was supposed to stop.
Early heavy trucks used mechanical drum brakes.
Cables or rods ran from the brake pedal directly to the brake shoes at each wheel.
The force applied to those shoes was essentially the force the driver could generate through the pedal multiplied by whatever mechanical advantage the linkage geometry allowed on a light vehicle on flat ground at modest speeds.
That arrangement worked.
But commercial trucking was not a light vehicle flat ground modest speed operation and it was becoming less so with every passing year.
The commercial truck had been growing heavier and more capable since the first decade of the 20th century.
And the scale of that shift was not gradual or incidental.
It was driven by a fundamental change in how American commerce moved goods.
Freight that had previously traveled by horse drawn wagon or rail was shifting to motor trucks because motor trucks offered something neither alternative could match.
The ability to pick up a load at one specific location and deliver it to another without a transfer, without a fixed schedule, and without the geographic constraints of a rail line.
A merchant in a town without a rail depot could now receive a direct delivery.
A manufacturer could ship finished goods to a warehouse across the state without coordinating with a railroad timetable.
That flexibility had enormous economic value.
And the industry responded to it by building trucks that could carry more, travel farther, and operate on a wider range of roads.
Gross vehicle weights that had been measured in a few th000 lb in the early years were climbing well beyond 10,000 lb with the heaviest trucks nearing 20,000 as the 1920s progressed.
The engines were getting more powerful.
The frames were getting heavier.
The tires were improving, but the braking systems were not.
The fundamental problem with mechanical brakes on a heavy vehicle was not poor design.
It was a physical ceiling.
A mechanical linkage can only transmit as much force as the input end receives.
And the input end was a human foot on a pedal.
Engineers improved the mechanical advantage of the linkage geometry, and they did so repeatedly.
But there was a hard limit on how much force multiplication a rod and lever system could practically achieve before the geometry became unwieldy or the components too heavy to be useful.
On a truck weighing 10,000 lbs or more, moving at the modest road speeds of the era on a downhill grade, that ceiling was not high enough.
And the harder the driver pressed, the more uneven the application tended to become across the different wheels, which introduced the additional problem of the truck pulling to one side under hard braking.
Hydraulic brakes, which began appearing on passenger cars following Malcolm Lockheed’s 1918 invention and saw wider adoption as the 1920s progressed, offered a genuine improvement because they used fluid pressure to multiply the driver’s input and distribute it more evenly across all four wheels.
But hydraulic systems carried a serious vulnerability in heavy commercial applications.
The entire system depended on a sealed fluid circuit.
And if that circuit developed a leak anywhere along its length, a cracked fitting, a failed seal, a single damaged line, braking force could degrade rapidly or disappear entirely.
For a passenger car, that was a serious problem.
For a fully loaded commercial truck on a mountain grade, it was a different category of event.
Hydraulic systems also faced a scaling problem.
The greater the braking force required, the heavier and more stress the components became, and the more the system punished its own seals and fittings under repeated hard use.
The trucking industry in the early 1920s was not a marginal enterprise.
It was a growing commercial infrastructure that American businesses were beginning to depend on in serious ways.
The Federal Aid Highway Act of 1921 had committed the federal government to building and improving a national road network, and trucks were moving food, manufactured goods, raw materials, and construction supplies across distances, and into areas that rail could not efficiently serve.
Gross vehicle weights were climbing, roots were getting longer, and the safety argument was becoming harder to ignore.
A braking system adequate for a light delivery truck was not adequate for a vehicle carrying 15,000 lb of freight at sustained highway speeds.
The question of how to stop these vehicles reliably was no longer an engineering curiosity.
It was a commercial and public safety problem and it needed a real answer.
That answer had actually existed for more than 50 years applied to a different kind of vehicle on a different kind of road.
George Westinghouse had been 22 years old in 1868 when he ran the first successful test of his compressed air brake system on a passenger train running between Pittsburgh and Stubenville, Ohio.
The problem he had been trying to solve on the railroad was structurally identical to the one now confronting the trucking industry.
How do you reliably stop a heavy vehicle that is too large and too powerful for any braking system that depends on direct mechanical force from a single operator on a train?
The problem was even more acute because the engineer at the front of the locomotive had no physical connection to the brake mechanisms on the cars behind him.
Stopping a train in the 1860s required brakemen stationed on top of the cars, turning hand wheels to apply friction brakes on each car individually, a process that was slow, inconsistent, and dependent on the brakeman being in position and responding quickly.
On a long train moving at speed, the stopping distance was enormous, and the system failed regularly with fatal results.
Westinghouse’s insight was that compressed air could do what mechanical linkages could not.
Air under pressure could be transmitted instantly through a pipe running the length of the train, actuating brake mechanisms at every car simultaneously with consistent force under the control of a single operator.
He patented the straight air bra in April of 1869 and founded the Westinghouse Air Brake Company in Pittsburgh that same year.
The initial system worked by sending compressed air from a reservoir on the locomotive through a train pipe to break cylinders on each car where the air pressure pushed a piston that applied the brakes.
It was a significant improvement over hand brekes, but it had a critical vulnerability.
If the train pipe broke or a car became separated, the air pressure was lost and the brakes released rather than applied, which meant a runaway car had no braking at all.
Westinghouse recognized this and solved it in 1872 with the automatic air bra which inverted the logic of the system entirely.
In the automatic system, the brakes were held in the released position by air pressure and they applied automatically when pressure was lost.
A broken pipe, a separated car, a failed fitting, any loss of pressure would cause the brakes to engage rather than release.
The system was designed as a fail safe and that principle would eventually become one of the most important features of air brakes on heavy trucks.
When truck engineers and manufacturers in the early 20th century looked at the braking problem they were facing, the railroad solution was not an obscure reference.
It was a proven operating system that had already solved the exact same scaling challenge on a much larger vehicle.
The railroad had heavier loads, more axles, and far greater stopping distances to manage than any road truck.
And compressed air had handled all of it reliably for decades.
The core appeal was straightforward.
Air pressure could be generated by an engine-driven compressor stored in onboard reservoirs and delivered through lines to brake actuators at every axle with consistent force and near simultaneous response.
None of which required the driver to generate the braking force directly.
That was precisely what mechanical linkages on trucks had failed to provide.
And it was exactly what the next generation of heavier, faster commercial vehicles was going to need.
By the mid1 1920s, air brakes were gaining acceptance on heavy commercial trucks.
And over the following two decades, as vehicles grew heavier and routes grew longer, they became the industry standard.
Unlike a Jake brake, which slows the truck through the engine, air brakes are the truck’s primary wheel braking system.

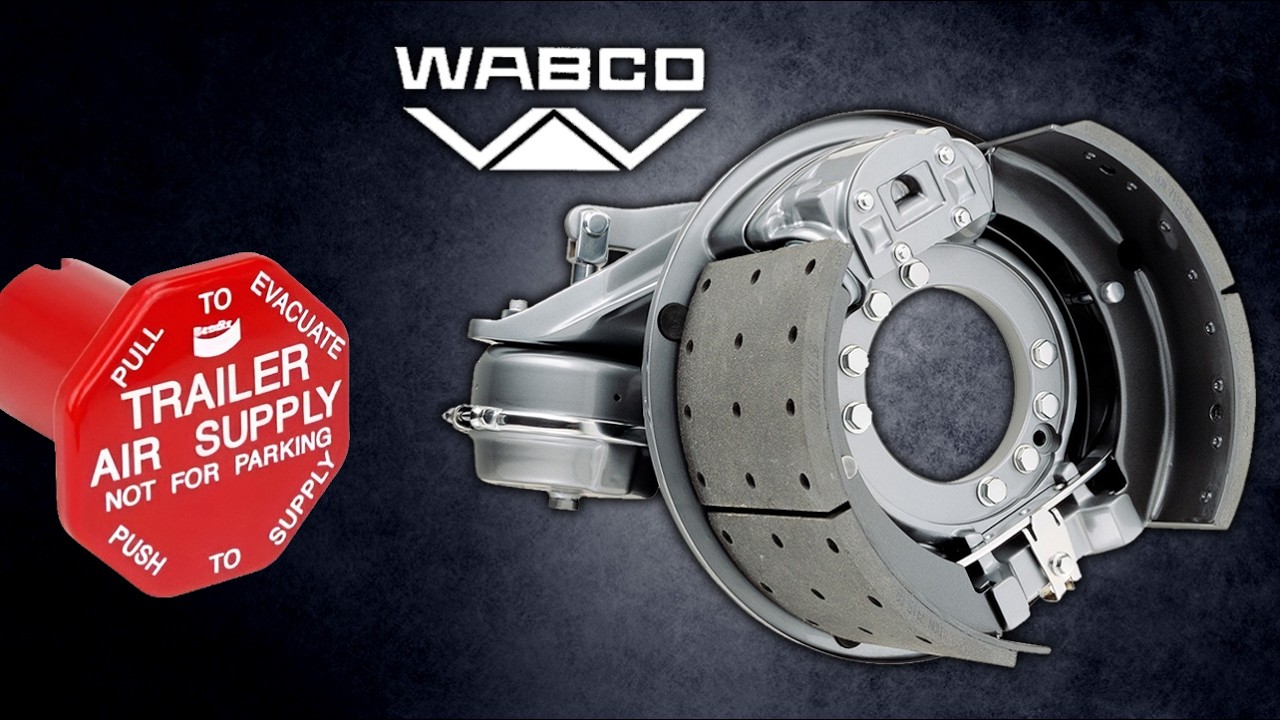

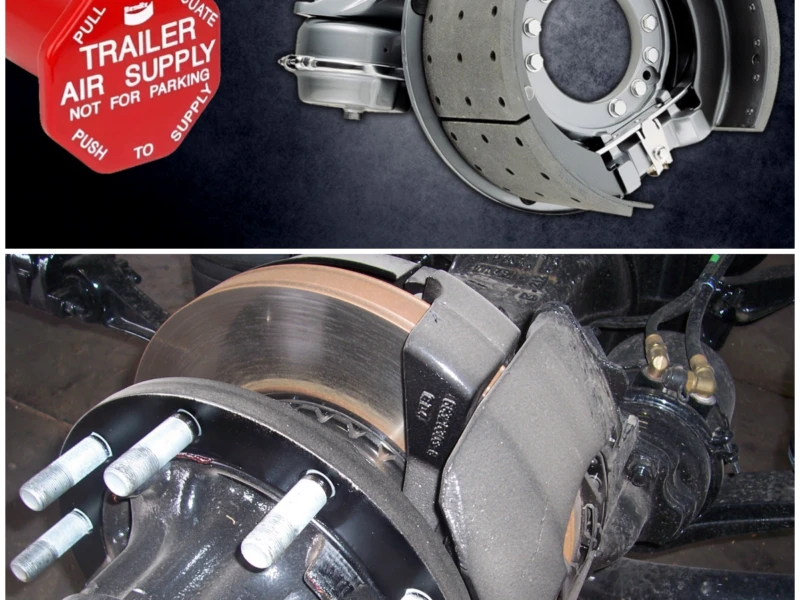

The core of a truck air brake system begins with a compressor driven by the engine which draws in atmospheric air and compresses it typically to operating pressures between 100 and 120 lb per square in storing it in one or more reservoirs mounted on the vehicle frame.
Those reservoirs act as a buffer holding enough compressed air to make multiple full brake applications even if the compressor is not running.
And a governor valve cycles the compressor on and off to keep the system pressure within its operating range.
When the driver presses the brake pedal, a foot valve meters compressed air from the reservoirs through lines running to brake chambers at each wheel.
Inside each brake chamber, the incoming air pushes against a flexible diaphragm, which moves a push rod, which rotates a slack adjuster, which turns the brake cam shaft, which spreads the brake shoes against the drum.
The force applied to the brake shoes is not the force the driver’s foot generates.
It is the force of compressed air acting against the area of the diaphragm in the brake chamber.
And that force is substantial, consistent, and available at every axle simultaneously, regardless of how many axles the vehicle has or how far they are from the driver.
That last point matters more than it might initially seem.
A mechanical brake system on a multi-axxle truck required linkages running from the pedal to every brake assembly on the vehicle.
And the longer and more complex those linkages became, the more friction, flex, and inconsistency they introduced.
Getting even brake application across a tandem rear axle with a mechanical system was genuinely difficult.
And getting it across a tractor trailer combination with a mechanical connection between the tractor and the trailer was essentially impractical.
The trailer was a separate vehicle connected by a coupling and running a reliable mechanical brake linkage across that connection while accounting for the articulation between tractor and trailer was an engineering problem that had no clean solution.
Air brakes solved this in a way that was both elegant and immediate.
The compressed airlines running to the trailer connected through standardized couplings.
The fittings that drivers came to call glad hands.
And the trailer’s own brake chambers, reservoirs, and valves operated on the same air supply as the tractor, controlled by the same foot valve with the same response time and the same braking force per chamber.
A fully loaded tractor trailer combination carrying 40 or 50,000 lbs of freight could have its brakes applied simultaneously and consistently across every axle front to rear with a single input from the driver.
That capability transformed what combination vehicles could safely do.
Loads that would have exceeded the safe stopping ability of older systems could now be hauled with confidence.
The tractor trailer as a practical commercially viable freight unit depended on this and air brakes were what made it possible.
The failsafe logic that Westinghouse had built into the railroad system translated directly to the truck application.
In later heavy truck air brake development, it was extended further in ways that addressed the most dangerous failure modes that earlier systems had never been able to eliminate.
Later, heavy truck air brake development introduced spring brakes on the drive axles, which work on the same inverted principle as Westinghouse’s 1872 automatic railroad brake.
Inside each spring brake chamber, a heavy coil spring is held, compressed by air pressure during normal operation.
Normal system air pressure keeps the spring compressed and the brakes released, allowing the wheels to turn freely.
If system pressure drops below that threshold for any reason, a ruptured line, a failed fitting, a compressor failure, a separation between the tractor and trailer, the spring extends and applies the brakes with the full force of the compressed spring without any input from the driver and without any air pressure to actuate it.
The brakes apply automatically because the system is designed so that stopping is the default condition and rolling freely requires the system to be working correctly.
A hydraulic system can lose all braking when pressure is lost.
An air brake system is designed so that a loss of air pressure triggers protective braking functions rather than simply leaving the vehicle with nothing.
And that difference is not a minor engineering detail.
It is the difference between a failure mode that leaves the driver with options and one that removes them entirely.
The tractor protection valve extended this logic to the trailer connection.
If the airlines between the tractor and trailer were severed, if a trailer broke away from the tractor on a downhill grade, or if the glad hand connections failed, the tractor protection valve automatically closed, preserving air pressure in the tractor’s own system while simultaneously allowing the trailer’s spring brakes to apply.
A runaway trailer was not a theoretical concern in the early decades of combination vehicle operation, and the tractor protection valve was a direct engineering response to that reality.
As air brakes became standard through the late 1920s and into the 30s and beyond, the trucking industry’s operating envelope expanded in ways that would not have been possible under the older systeMs. Trucks could be built heavier because the braking system could now scale with the vehicle weight.
As braking technology improved, states began revisiting the gross vehicle weight limits they had imposed over safety concerns on public roads.
Longer routes became more practical because drivers could manage sustained descents with more confidence.
Knowing the braking force available to them was stronger, more consistent, and far less dependent on the physical limits of a driver’s leg than the older mechanical systems had been.
The combination vehicle, a tractor pulling one or more trailers, became a commercially viable and operationally safe configuration in a way it had never been before because the air system could extend reliable braking to every axle of the combination through a simple pneumatic connection.
In later heavy truck development, dual circuit air systems took this protective logic further by dividing the air supply into two completely independent circuits.
Typically, one serving the front axle and one serving the rear axles and trailer.
A failure in one circuit, a ruptured line, a failed valve, a damaged reservoir left the other circuit fully intact and fully functional.
The driver retained meaningful braking capability even with a significant system failure.
And the gauges in the cab gave continuous pressure readings for both circuits so that a developing problem could be identified before it became a crisis.
The system was not just designed to work.
It was designed to keep working under conditions that would have left an older braking system with nothing to offer.
Modern class 8 trucks operate at gross vehicle weights of up to 80,000 lb under federal limits.
And they do so on interstate highways at speeds that would have been unthinkable in the early decades of trucking.
The long descents through the Rockies, the Sierra Nevada, and the appellations that modern drivers run every day with full loads and full confidence depend on a braking system that can scale with the machine.
The weights, the distances, the combination vehicles, and the mountain corridors of modern long haul freight all assume the same thing.
That braking will be reliable, scalable, and safe to fail.
Air brakes made that possible.
