The Invention That Saved America’s Trucks on Deadly Mountain Grades
The Invention That Saved America’s Trucks on Deadly Mountain Grades
Imagine you are driving a heavyduty truck hauling nearly 70,000 lb of cargo descending along mountain grade.
At first, everything seems fine.
You ride the brakes to keep your speed under control.
But after only a few minutes, heat begins to build up inside the brake drums.
The temperature spikes.
The brake linings begin to lose effectiveness.
And then the worst thing happens.
You press the brake pedal, but the truck no longer slows down like it did before.
That is brake fade.
When the brakes get too hot, friction drops dramatically, and the driver is left with almost no control over the massive steel machine rushing downhill.
In that moment, you are no longer the one controlling the vehicle.
You become an unwilling passenger inside your own machine.
And that is exactly where today’s story begins.
This is a story about the Jacob’s engine brake or Jake brake.
The invention that changed the way heavyduty trucks descend mountain grades.
Instead of relying only on traditional friction brakes, it uses the engine itself to hold the truck back and has saved countless lives on the road.
In 1931, Ky Cumins was driving a diesel truck along the route through Kon Pass, the notoriously dangerous mountain grade connecting southern California to the inland desert.
On board was an Indianapolis race car, which he was using to prove that the diesel engine was not only powerful, but also durable enough to serve the future of long haul transportation.
But as the truck began descending the grade, everything quickly spiraled out of control.
The braking system became overloaded, the truck charged downhill under its tremendous weight, and it came to a stop only a few inches from the caboose of a train.
That moment was not just a narrow escape from death.
It was the shock that changed the way Cumins looked at the very machine he believed in.
The irony was brutal.
He was trying to prove the power of diesel.
Yet that very power and weight nearly turned his invention into a disaster.
His machine produced extraordinary pulling force.
But it still had no truly safe way to control that force on a long downhill grade.
If the truck had slammed into the train that day, the story might have ended right there.
Cumins could have been killed.
His company might have collapsed and the development of diesel trucks in America might have been set back for years.
But more important than that, after that moment, one question took root in the mind of an engineer and would not go away.
How could a machine built to create immense power also help control that very power?
And from the haunting memory of Kjon Pass, the journey to find a real answer truly began.
But it was not until many years later that Klesie Cumins truly saw the answer.
After retiring in 1955, he returned to the old obsession.
The problem was no longer how to create more power from a diesel engine, but how to use that very power to hold the truck back on a downhill grade.
The brilliance of the idea was that he did not try to invent an entirely new braking system.
He looked directly at the physical nature of the diesel engine itself.
With a very high compression ratio, typically from 17:1 to 20 to1, every time the piston moved upward, the engine had to do a great deal of work to compress the air inside the cylinder.
Under normal conditions, that energy was not lost.
Once the piston passed top dead center, the compressed air would expand and push the piston back down, returning most of that energy to the crankshaft.
Cummins realized that if he could interrupt that moment of energy return, the engine would no longer function as a power producing device, it would become a giant air compressor designed to pull kinetic energy out of the vehicle.
That is the core principle behind the Jacob’s engine brake.

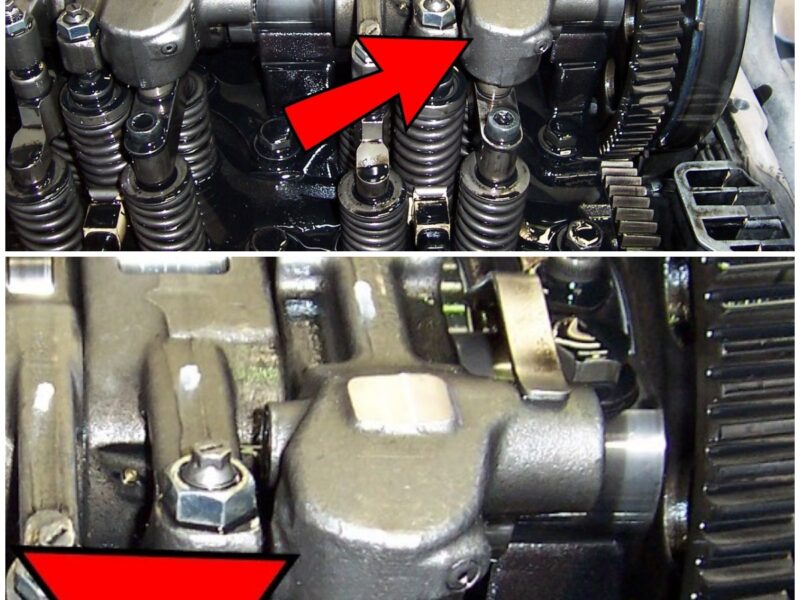

When the system is activated, engine oil pressure moves through the master piston and slave piston mechanism to open the exhaust valve at the exact moment the piston reaches top dead center.
The air charge which has just been compressed to extremely high pressure is immediately released before it can push the piston back down.
The result is that all the work used to compress that air is lost.
The engine is forced to repeat that cycle continuously pulling energy backward from the wheels through the drivetrain and slowing the vehicle down.
That is the true beauty of this invention.
It is not bulky, not flashy and it does not require another massive friction braking system.
It uses exactly what the engine already has, from high compression pressure to engine oil pressure and turns the entire engine into an incredibly powerful mechanical retarder.
Instead of fighting inertia with friction, it uses inertia itself to cancel its own force.
In April 1960, that invention officially entered the world under the name Jacob’s engine brake.
And from that point on, the history of heavy duty trucks in America began to change.
For the first time, people had a way to conquer long downhill grades without placing all their hope in friction brakes glowing red with heat.
But from that point on, the Jacob’s engine brake also began to create a very unusual conflict.
Technically, it was a life-saving invention.
But in terms of sound, it quickly became the thing that woke entire neighborhoods in the middle of the night.
When a Jake brake is activated, especially on trucks with straight exhaust stacks or poorly muffled exhaust systems, the sound it produces is nothing like an ordinary engine note.
It is a rapid series of sharp, dry, chattering bursts, almost like machine gun fire echoing down a mountain side.
For people living along mountain roads or near highways, that was not some fascinating mechanical sound.
It was noise that shock windows, shattered sleep, and reminded them that heavy trucks were still rolling through their town at 2:00 in the morning.
That is why signs reading no Jake break or no engine break began appearing everywhere.
From the resident’s point of view, that reaction was completely understandable.
No one wants to be jolted awake in the middle of the night by the harsh mechanical racket coming from a machine weighing tens of thousands of pounds.
But on the other side of that sign was a far harsher reality.
For a truck driver descending a mountain grade, a Jake brake was not just a convenient feature.
It was the first line of defense that kept the service brakes from overheating and falling into brake fade.
So the very same sound could carry two completely different meanings.
To the people living along the roadside, it was noise pollution.
But to the driver pulling a semi-truck downhill, to the family car traveling just ahead of that class 8 rig, or to the wife waiting for her husband to return home from a long haul, that sound was a signal of safety.
It meant the driver still had a tool to control that massive steel machine before the wheel brakes were heated redot.
That is the paradox of modern society.
We want goods delivered fast, in large quantities, and at low cost.
We want storeshelves to stay full, gas stations to stay supplied, and supermarkets to always have fresh food.
But we also want all of that to happen in complete silence, as if that enormous freight network comes with no cost at all.
The Jake Break exposed that contradiction more clearly than almost any other technology in the trucking industry.
And over time, the industry had to adapt.
Quieter exhaust systems, more effective mufflers, and better noise control standards gradually appeared.
The conflict never disappeared completely, but it changed.
The question was no longer whether engine brakes should be used.
The question became how to preserve their life-saving ability without turning an entire town into a victim of the noise.
After all, the greatest value of the Jacob’s engine brake does not lie in the fact that it produces a distinctive sound, nor only in the fact that it became a familiar piece of equipment on heavyduty trucks.
Its true value lies in the number of lives that were not lost on the long mountain grades of America.
In 1992, this invention was honored by the American Society of Mechanical Engineers as an important engineering landmark.
It was official recognition for an idea that completely changed the way the transportation industry viewed control of heavy trucks.
Instead of relying almost entirely on traditional friction brakes, the industry now had an intelligent mechanical layer of defense capable of sharing the burden with the primary braking system.
And over time, the Jake brake gradually became standard equipment on many heavyduty diesel trucks.
Not because it was flashy, but because it was too necessary to ignore.
And yet, even though technology has advanced so far, runaway ramps on mountain routes like I70 are still there.
Those gravel-filled escape lanes are not just traffic infrastructure.
They are like relics left behind from a darker era when people had to accept that a single mistake, breaks running too hot, or a grade that stretched too long could end in disaster.
In a way, every runaway ramp is a concrete tombstone for an era when gravity often won.
They remind us that before solutions like the Jacob’s engine brake existed, taking a heavyduty truck down a mountain grade was once an almost desperate battle between steel, heat, and fate.
